Setting up a reverse proxy with PfSense®

pfsense firewall
pfsense Firewall Revers Proxy

HaProxy - highly configurable proxy package

Company: Personal Project

I needed to protect and build a front end to serve many sites that I have behind the one IP my current location has been assigned. Haproxy offered that very solution with its highly manageable and high performnace load balancer which is included as a package avaliable in pfsense.

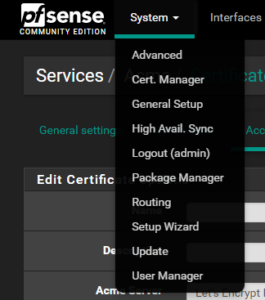

Acme Logo

Like all the literature says this is a high capacity load balancing proxy. It is like a Swiss army knife for hosting. This will be the base for our host platform and redirecting our web traffic to the back end hosting servers. This proxy can also redirect other protocols other than plain web traffic, at the moment it can do other TCP based protocols. Bonus, It will work alongside SQUID as well without an issue, unless you use SQUID as your reverse proxy! Then you will have to choose!

Before we get into the nuts and bolts of setting up a pretty basic reverse proxy with HaProxy, we have to make some changes to better secure and route our traffic.

First off, if you have taken the steps to generate some certificates with Let’s Encrypt and the acme package then perfect.

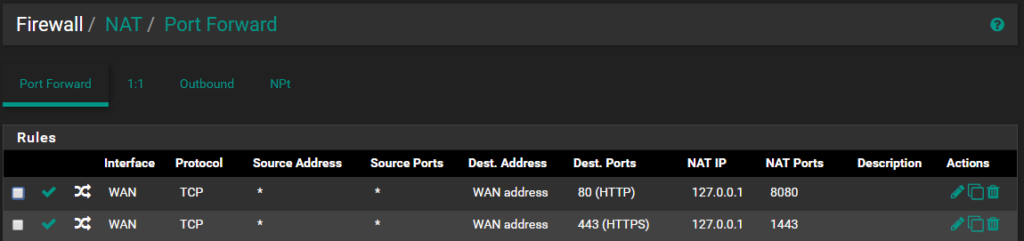

So let’s go on to setting our NAT rules and port redirects: Menu / Firewall / NAT

For right now we are going to create two port forwards on our WAN, they could theoretically go to any IP you designate virtually. I used localhost since it won’t be confused or possibly used anywhere but the firewall itself. It is simpler to setup and make work without too much fanfare. This will be the IP address that HaProxy will listen on. You will see two firewall rules created on your WAN interface and then we are all set to go. NAT Rules Screenshot

Services / HAProxy / Settings

For a pretty modest and basic setup, you can leave all the settings at default except two, the Maximum connections should be at least 5000 to 10000 and Custom options.

If you want an A rating from Qualys SSL Labs, put this code into the Custom options box:

# Modern browser compatibility only as mentioned here:
# https://wiki.mozilla.org/Security/Server_Side_TLS
ssl-default-bind-options no-sslv3 no-tlsv10 no-tls-tickets
ssl-default-bind-ciphers ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!3DES:!MD5:!PSK
tune.ssl.default-dh-param 2048
tune.ssl.maxrecord 1370
ssl-default-server-options no-sslv3 no-tlsv10 no-tlsv11 no-tls-tickets
ssl-default-server-ciphers ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!3DES:!MD5:!PSK

Note: The above box may wrap text; ensure no unwanted newlines are introduced in your config.

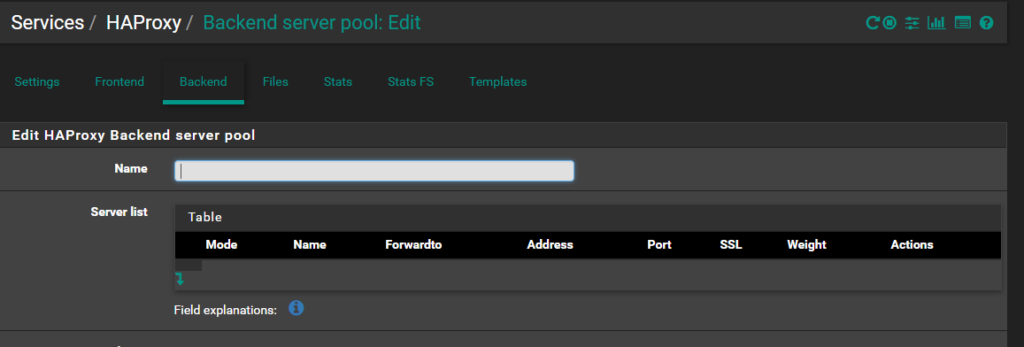

The last two things we have to concern ourselves with is the concept of Frontend and Backend. Before we begin, the backend services have to be configured first. Otherwise the frontend will not have a service to attach to. Give it a name that makes logical sense, plop in the IP address and port, and save. HAProxy Frontend/Backend List

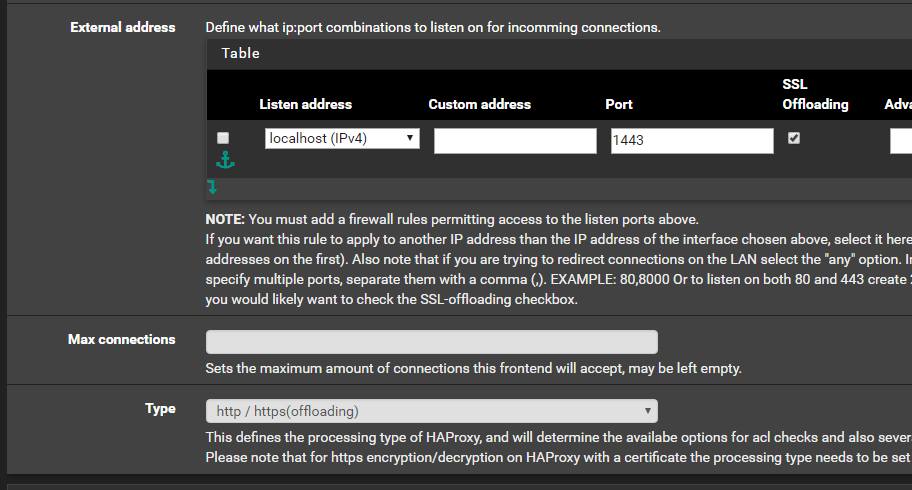

HTTPS Settings

HTTPS Traffic & Offloading

Under Type, choose "http https(offloading)". It is really important to ensure the SSL Offloading box is checked or you will not be able to process security certificates.

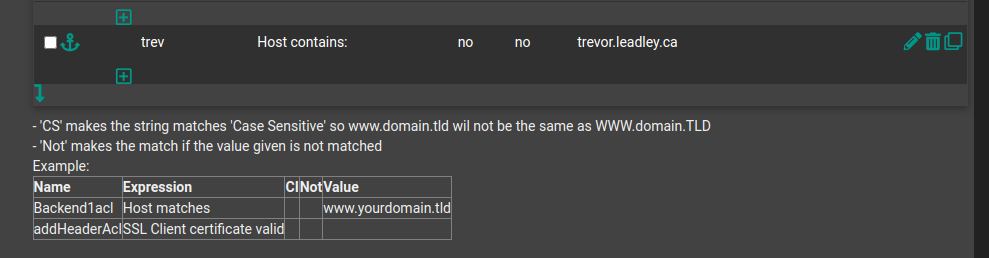

ACL Rules

ACL and Actions

ACL is what you want the service to do when it gets a header match (usually your domain name). The order matters: keep your base domain last. Under Actions, direct the traffic to your backend server.

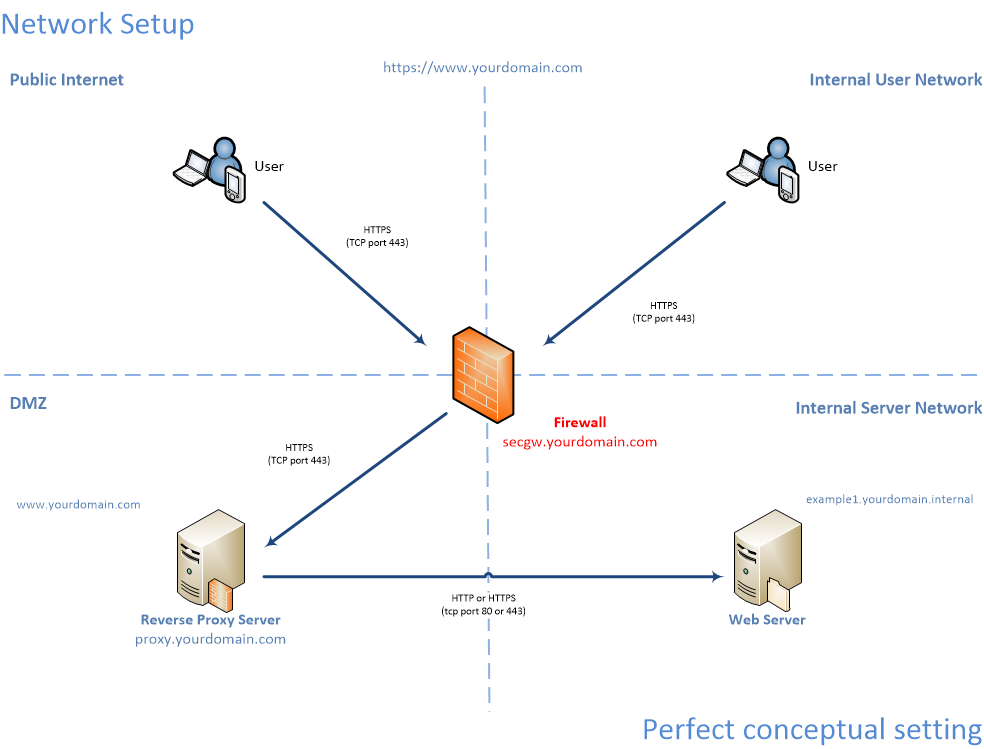

Conceptual Network Diagrams

Network Diagram 1
I choose not to do split DNS since this can become messy. Instead, I use NAT redirects for internal users. HAProxy handles the heavy lifting with SSL certificates, allowing the backend to run on unencrypted channels to reduce overhead. Network Diagram 2

Environment Specs

  • Intel(R) Xeon(R) CPU E5507 @ 2.27GHz, 2GB RAM
  • PfSense® 2.4.0-RELEASE (amd64)
  • acme 0.1.21 | haproxy 0.52_14

References

pfsense HAProxy Documentation

Brian Truscott: Multiple Domains on Single IP
